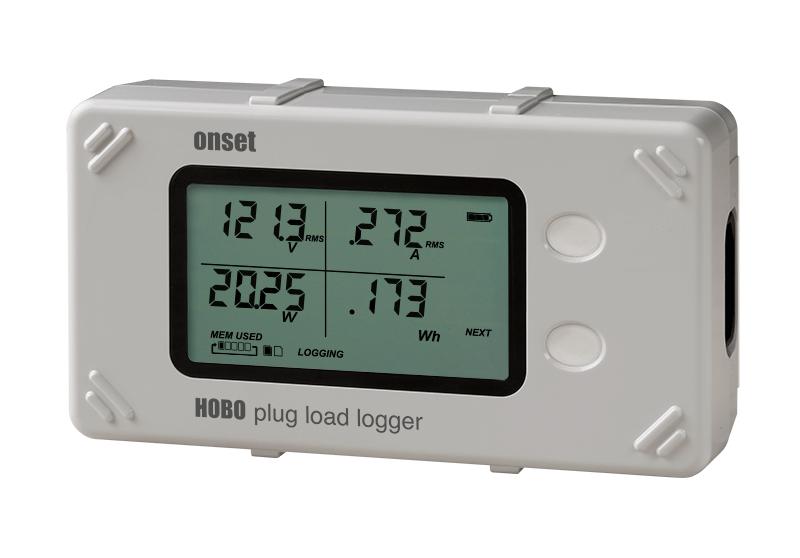

Plug Load Data Logger

A high-accuracy, easy-to-deploy data logger that measures and records the power and energy consumption of 120V plug loads from office equipment, vending machines, and other devices. These devices can simply be plugged into the logger, and it will record all the key power parameters.

This UL-certified logger provides 0.5% measurement accuracy with a measurement resolution of 1 watt, making it an ideal choice for building audits where detailed energy use data is required. The rugged housing is designed to withstand the rigors of real-world handling, providing reliable performance despite bumps, drops, and use under desks.

Documentation

Highlighted Features

No Electrician Required

Simply plug in the device that needs to be monitored.

• 0.5% measurement accuracy enables more reliable plug load energy data
• "Meter Mode" provides instant viewing of real-time plug load variables
• Provides time-stamped and totalized load data for detailed energy analysis
• Large memory enables faster logging intervals for more comprehensive plug load profiles

• Battery backup ensures that logged data remains intact in the event of a power outage or load failure

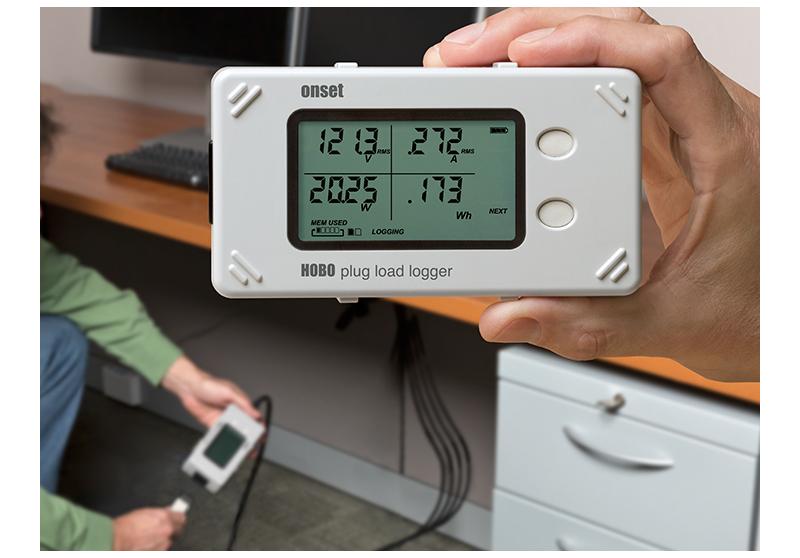

• Full-featured LCD display provides visual diagnostics for easy deployment

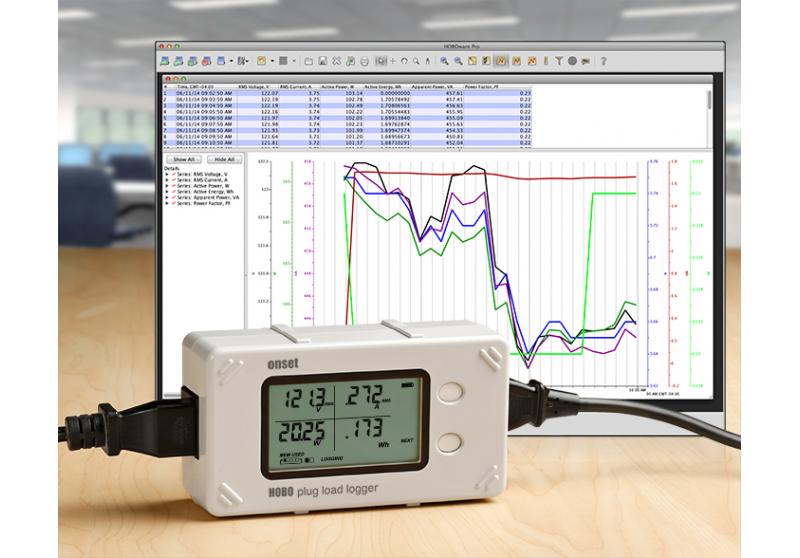

• Compatible with HOBOware and HOBOware Pro software for logger setup and graphing & analysis

Specifications

• Intended Use: Indoor use only

• Insulation Category: 2

• Maximum Current: 15 Amps

• RMS Voltage Accuracy: 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle

• RMS Current Accuracy: 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle

• Active Power Accuracy: 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle

• Active Energy Accuracy: 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle

• Power Factor Accuracy: ±0.02

• Drift: Up to 0.5% typical within 1 year

• Resolution:

  • Volts, rms: 10mV
  • Amps, rms: 0.1mA
  • Active Power: 10mW down to 1 watt loads @ 120VAC
  • Active Energy: 10mW
  • Apparent Power: 10mVA
  • Power Factor: 0.01 PF

• Operating Environment:

  • Logging: 5° to 40°C (41° to 104°F); 0 to 95% RH (non-condensing), up to 2,000 m (6,562 ft) altitude

• Operating Modes: Meter or logging when launched with HOBOware

• Logging Rate: 1 second to 18 hours, 12 minutes, 15 seconds

• Statistics Sampling Rate: 60 Hz or 16.67 mS single-cycle

• Memory Modes: Wrap when full or stop when full

• Start Modes: Immediate, push button, date & time, or next interval

• Stop Modes: When the memory is full, push the button, or date & time

• Restart Mode: Push-button

• Time Accuracy: ±1 minute per month at 25°C (77°F), see Plot A

• Power Source: Line-powered with 0.92 m (3 ft) AC power cord or two AAA 1.5 V alkaline batteries, user replaceable

• Battery Life: 2 years with line power; 6 months battery only (no line power) with logging rate of 1 minute or greater operating at 25°C (77°F)

• Memory: 4 MB (1.4 million measurements, maximum)

• Download Type: USB 2.0 interface

• Full Memory Download Time: Approximately 1.5 minutes

• LCD: LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range

• Size: 13.97 x 7.62 x 4.75 cm (5.5 x 3 x 1.87 in.)

• Ratings: IP50

Application

In what environment does this data logger operate?

This data logger operates in an indoor environment.

What measurements does this data logger support?

The UX120-018 data logger supports the following measurements: AC Current, AC Voltage, Amps (A), Kilowatt Hours (kWh), Power Factor (PF), Volt-Amps (VA), Volts (V), Watt Hours (Wh), and Watts (W)

*Note not for use with 220V systems.
